telescopic boom crane/truck with crane/truck mounted crane

telescopic boom crane/truck with crane/truck mounted crane

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 500 Units per Month
  • Port: Shanghai port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Unit/Units
| Factory
Experience:2011-01-03
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  XUZHOU
  • Brand Name:  QINGONG
  • Model Number:  SQ8SK3Q

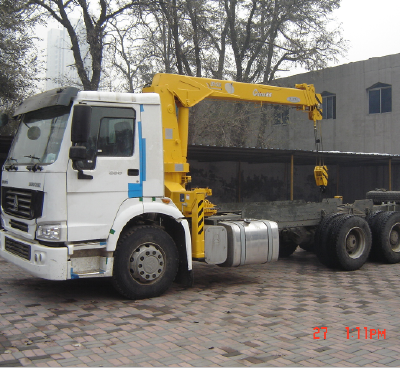

SQ8SK3Q telescopic truck mounted crane

Crane

Max. lifting capacity: 8000kg

Max.lifting moment: 20T.M

Working radius:2.5m

Max. working height: 11.5 m

Oil tank capacity:160L

Slewing angle: ±360°continuous rotation

Crane weight: 3315kg

Installation Space: 1200mm

Recommend Power : 27kw

Max Oil Flow of Hydraulic System: 55L/min

Rated Pressure Of Hydraulic System: 27MPa

Chassis

SINOTRUK HOWO ZZ1257M4341W

Engine: W615.87

Rated power: 336hp

Cab: HW76

Transmission: HW13710CL

Rear axle:ST16

Front axle: HF7

Steering: ZF8098

Cargo box dimension: 7100*2350*600mm


  • Place of Origin:  XUZHOU
  • Brand Name:  QINGONG
  • Model Number:  SQ8SK3Q

SQ8SK3Q telescopic truck mounted crane

Crane

Max. lifting capacity: 8000kg

Max.lifting moment: 20T.M

Working radius:2.5m

Max. working height: 11.5 m

Oil tank capacity:160L

Slewing angle: ±360°continuous rotation

Crane weight: 3315kg

Installation Space: 1200mm

Recommend Power : 27kw

Max Oil Flow of Hydraulic System: 55L/min

Rated Pressure Of Hydraulic System: 27MPa

Chassis

SINOTRUK HOWO ZZ1257M4341W

Engine: W615.87

Rated power: 336hp

Cab: HW76

Transmission: HW13710CL

Rear axle:ST16

Front axle: HF7

Steering: ZF8098

Cargo box dimension: 7100*2350*600mm
