- Place of Origin: China
- Brand Name: QINGONG
- Model Number: QLY50

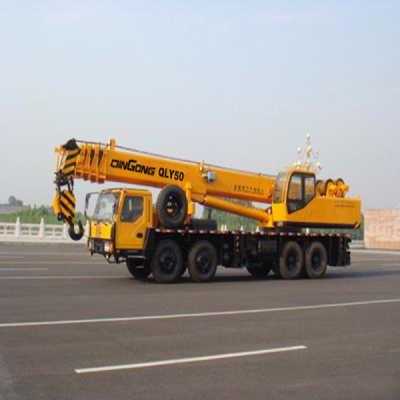

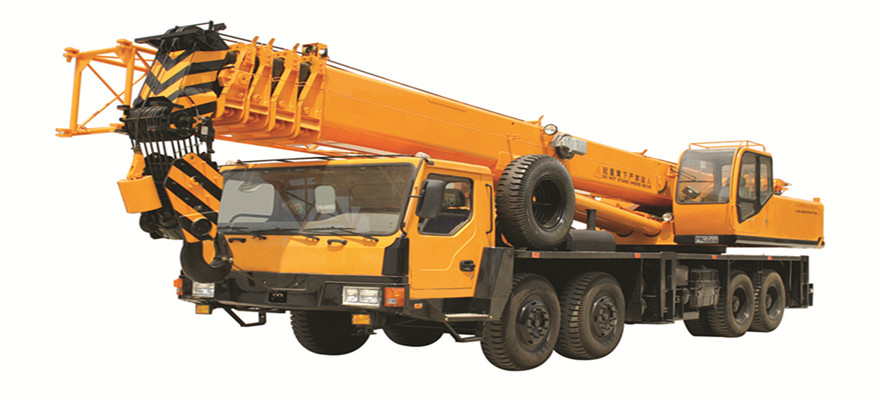

QLY50 Hydraulic Truck Crane Parameter
ITEM | UNIT | DATA |
Overall dimension | ||
Overall length | mm | 13580 |
Overall width | mm | 2750 |
Overall height | mm | 3700 |
Weight | ||
Total weight in travel | kg | 41750 |
Front axle load | kg | 15810 |
Rear axle load | kg | 25940 |
Engine | ||
Engine model | WP10.375 | |
Engine rated power | Kw/(r/min) | 276/2200 |
Engine rated torque | N.m/(r/min) | 1460/1200~1600 |
Chassis | ||
Max. travel speed | Km/h | 70 |
Min. turning diameter | m | 24 |
Min. ground clearance | mm | 300 |
Approach angle | ° | 23 |
Departure angle | ° | 12.5 |
Max. grade ability | % | 30 |
Fuel consumption for 100km | L | 45 |
Main performance | ||
Max. rated total lifting capacity | t | 50 |
Min. rated working radius | mm | 3000 |
Turning radius at turntable tail | m | 3.7 |
Max. lifting torque | KN.M | 1575 |
Base boom | m | 11 |
Fully extended boom | m | 40.2 |
Fully extended boom jib | m | 55.2 |
Longitudinal outrigger span | m | 5.5 |
Lateral outrigger span | m | 6.6 |
Working speed | ||
Boom luffing time | s | 95 |
Boom full extension time | s | 160 |
Max. swing speed | r/min | 2.5 |
Max. speed of main. winch (single rope) | m/min | 100 |
Max. speed of aux. winch (single rope) | m/min | ≤100 |
