Product Details
- Size: 54
- Place of Origin: Taian
- Brand Name: QINGONG
- Model Number: ZL35F
- Weight: 9800.000 kg

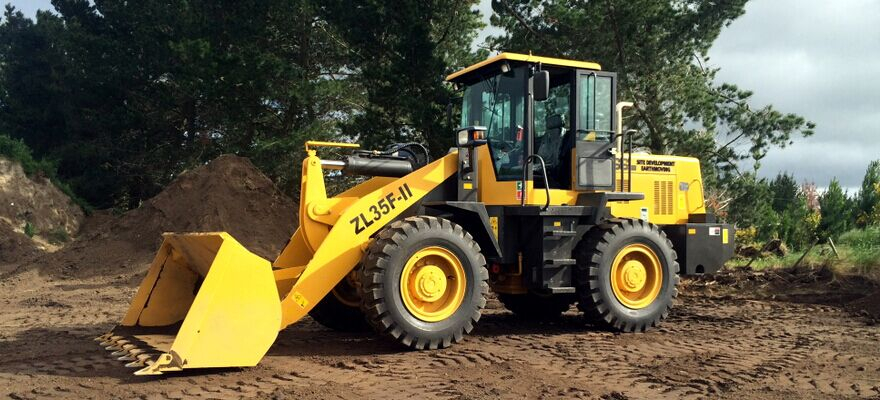

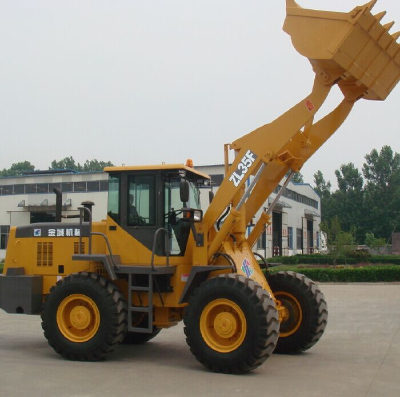

QINGONG Wheel Loader/ 3 ton wheel loader
| Main Specifications | |||
| Rated load | 3000KG | Maximum tractive force | 75KN |
| Rated bucket capacity | 1.7m3 | Maximum grade ability | 28° |
| Overall weight | 9800KG | Maximum dump height | 3100mm |
| Breakout force | ≥ 96KN | Maximum dump reach | 1160mm |
| Whole Dimension | 7120*2460*2950mm | Minimum turning radius | 5100mm |
| Engine | |||
| Model | Yuchai YC6B125-T10 | Rated power | 92kw-2200rpm |
| Transmission | |||
| Torque converter | YJ315 | Maximum speed | 36km/h |
| Gear shift | 4forward shift,2reverse shift | Gearbox mode | power shift |
| Axles | |||
| Main reducing spiral bevel gear grade 1 reduction | |||
| Decelerating mode planetary reduction grade 1 | |||
| Minimum ground clearance: 400mm | |||
| Wheel base | 2600mm | Wheel tread | 1800mm |
| Brake system | |||
| Service brake air over hydraulic disc brake on 4 wheels,Parking brake soft axle brake | |||
| Hydraulic system | |||
| System working pressure | 16mpa | Boom lifting time | 6s |
| Total time | 11s | Fuel tank capacity | 170L |
| Function of leveling automatically: yes | |||
| Tire | |||
| Type specification | 17.5-25 | Front /Reartyre pressure | 0.4/0.35Mpa |
| Cabine | |||
| An ergonomically designed sound proof cabine, enabling wide operational view | |||
