- Size: 4.7
- Place of Origin: shandong

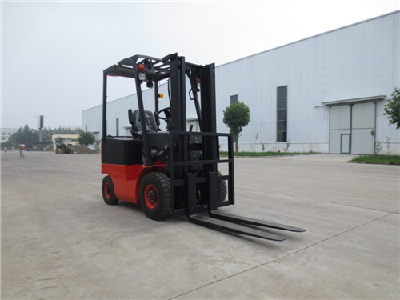

- Brand Name: QINGONG
- Model Number: CPD15C
- Weight: 1500.000 kg
1 | Model | CPD15J | ||
2 | Rated capacity | kg | 1500 | |
3 | Load center | mm | 500 | |
4 | Power type | Battery | ||
Dimensions | 5 | Lifting height | mm | 3000 |
6 | Free lifting height | mm | 60 | |
7 | Turning radius | mm | 1820 | |
8 | Overall length | mm | 2960 | |
9 | Overall width | mm | 1086 | |
10 | Overall height (mast lowered) | mm | 2115 | |
11 | Overall height (mast raised) | mm | 4015 | |
12 | Overall height (overhead guard) | mm | 2115 | |
13 | Fork length | mm | 1070 | |
14 | Fork width | mm | 100 | |
15 | Fork thickness | mm | 35 | |
Performance | 16 | Max. driving speed (with/without load) | km/h | 12.5/14 |
17 | Max. lifting speed (with load) | mm/s | 285 | |
18 | Max. traction (with load) | kn | 6.5 | |
19 | Gradeability (with load) | % | 15 | |
20 | Tilting angles (forward/backward) | ° | 6/12 | |
21 | Service weight | kg | 3050 | |
Motor | 22 | Traction motor | XQ-5-4A3 | |
23 | Lifting motor | XQD-7.5-3C | ||
Battery | 24 | Battery type | D-440 | |
25 | Batteryvoltage/capacity | V/Ah | 48/440 | |
Wheel | 26 | Front overhang | mm | 436 |
27 | Wheel base | mm | 1250 | |
28 | Front tread | mm | 900 | |
29 | Rear tread | mm | 920 | |
30 | Front tire | 6.50-10 | ||
31 | Rear tire | 5.00-8 |
